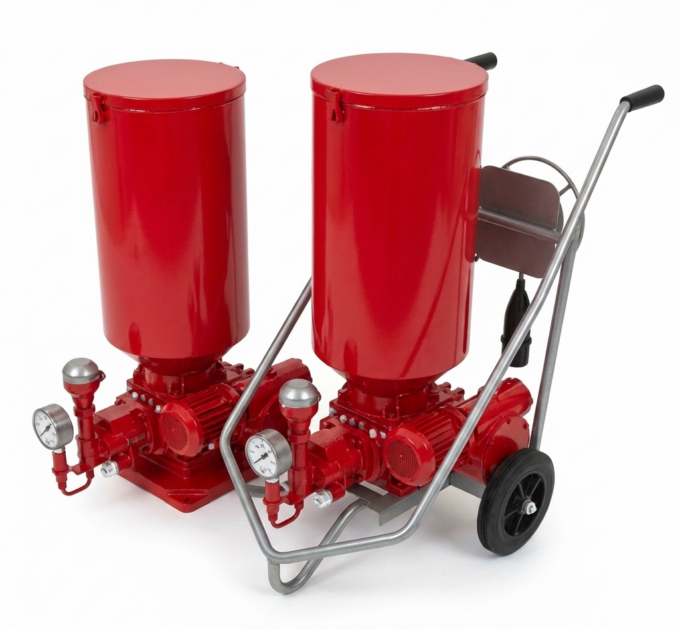

The MPD lubrication unit for the central lubrication of large machinery, serving as a source of pressurized lubricant.
The MPD lubrication unit consists of the lubrication unit itself, a lubricant reservoir, an electric motor, a gearbox, a pressure relief valve with a pressure-reducing nut, a pressure gauge, an electric switch, an electric lubricant level indicator (MPD 60-2 only), a frame with wheels (MPD 60-1), and a lubrication outlet (1 outlet for MPD 60-1, 2 outlets for MPD 60-2).
When using two pipe dispensers (MPD 60-2), they can be used to lubricate a large number of lubrication points and under heavy-duty operating conditions, such as for lubricating mining machinery, beverage filling lines, machinery in paint shops, cement plants, sugar refineries, etc.
| Maximum working pressure | 30 MPa |
| Working pressure | 20 MPa |
| Working pressure adjustment rangeRozsah regulace pracovního tlaku | 5 - 30 MPa |
| Nominal delivery quantity | 200 cm3.min-1 |
| Electric motor power | 750 W |
| Engine RPM | 1395 min-1 |
| Electric motor | 230/400 V, 1,86 A; 500 V, 1,49 A 50Hz |
| Tank capacity | 63 dm3 |
| Lubricant | tuk max. NLGI-2 (konzistenční stupeň) bez přísad grafitu, lithia, molybdenu a jiných přísad.Ověření vhodnosti použitého maziva na dotaz. mazací olej min. 50 mm2 . s-1 |
| Number of outlets: model MPD 60-1 model MPD 60-2 | 1 vývod 2 vývody |
| Environment | obyčejné s teplotou -20 až + 40°C |
| Weight | cca 125 kg |
