OZ – Cleaning and degreasing equipment
Equipment for cleaning and degreasing the metal strip surface
Product description

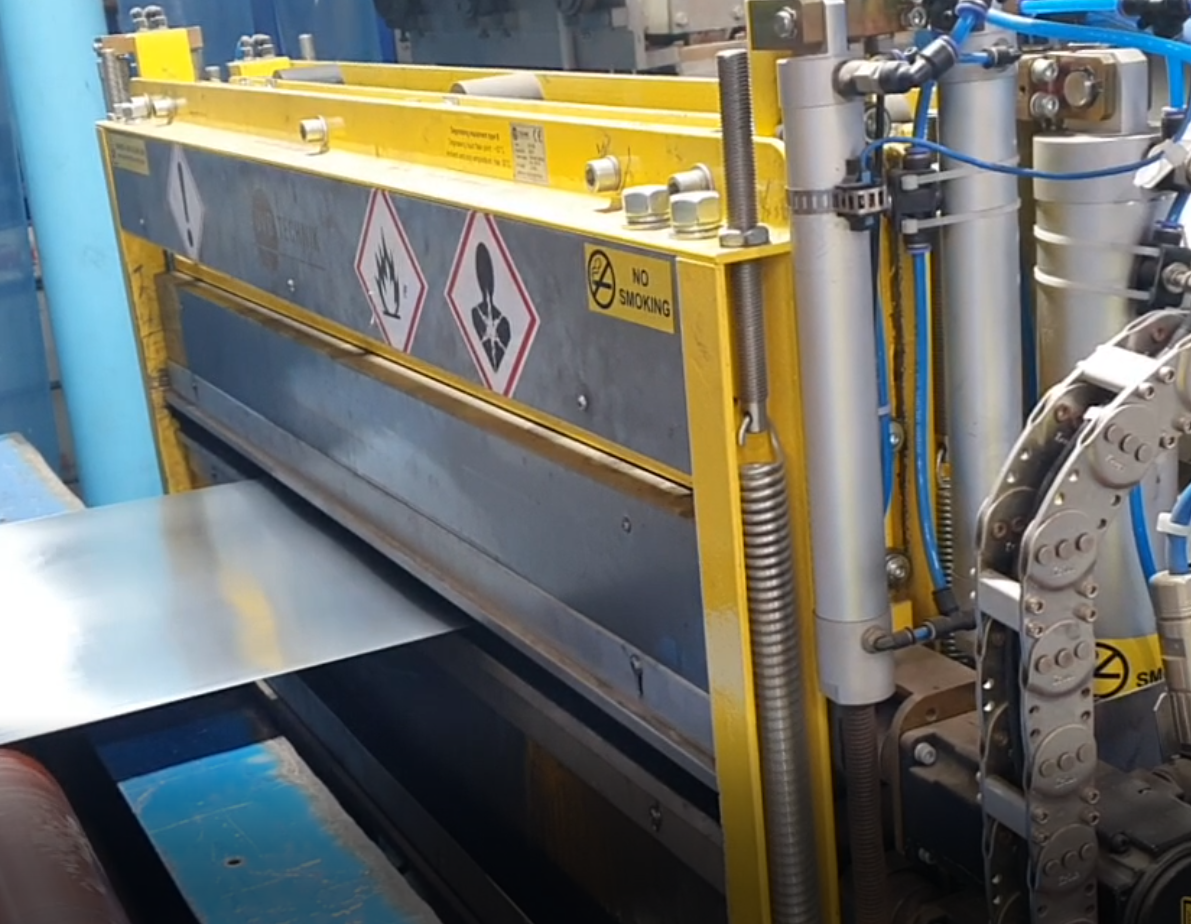

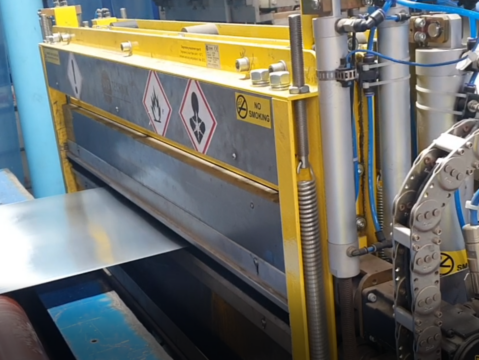

Cleaning and degreasing equipment is designed to clean strip surface and to remove the rest of oils and emulsions off the metal strip on processing lines.

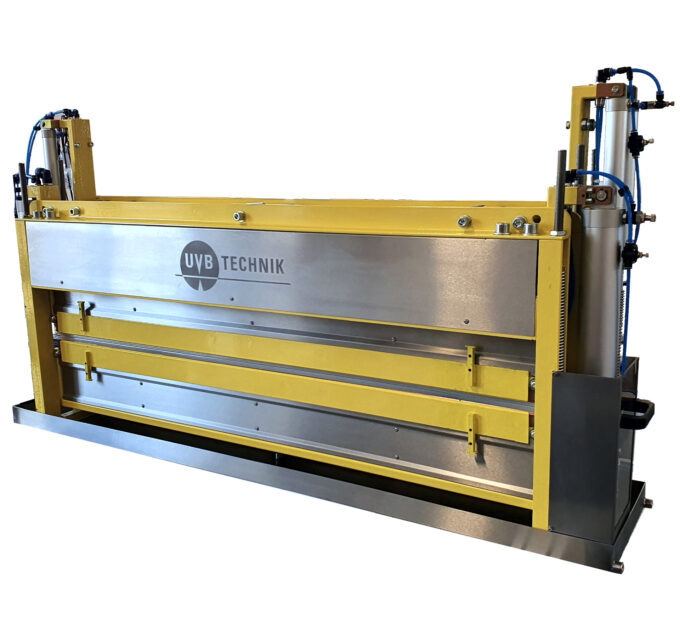

Cleaning and degreasing equipment consists of 3 sections in a floating frame:
- Wetting section with degreasing liquid sprayed through nozzles
- Brushing section with two round brushes rotating against strip movement
- Wiping section with two pairs of specially shaped abrasion resistant and flexible wiping slats. There is compressed air between wiping slats in order to increase efficiency of strip cleaning.
Process of cleaning and degreasing

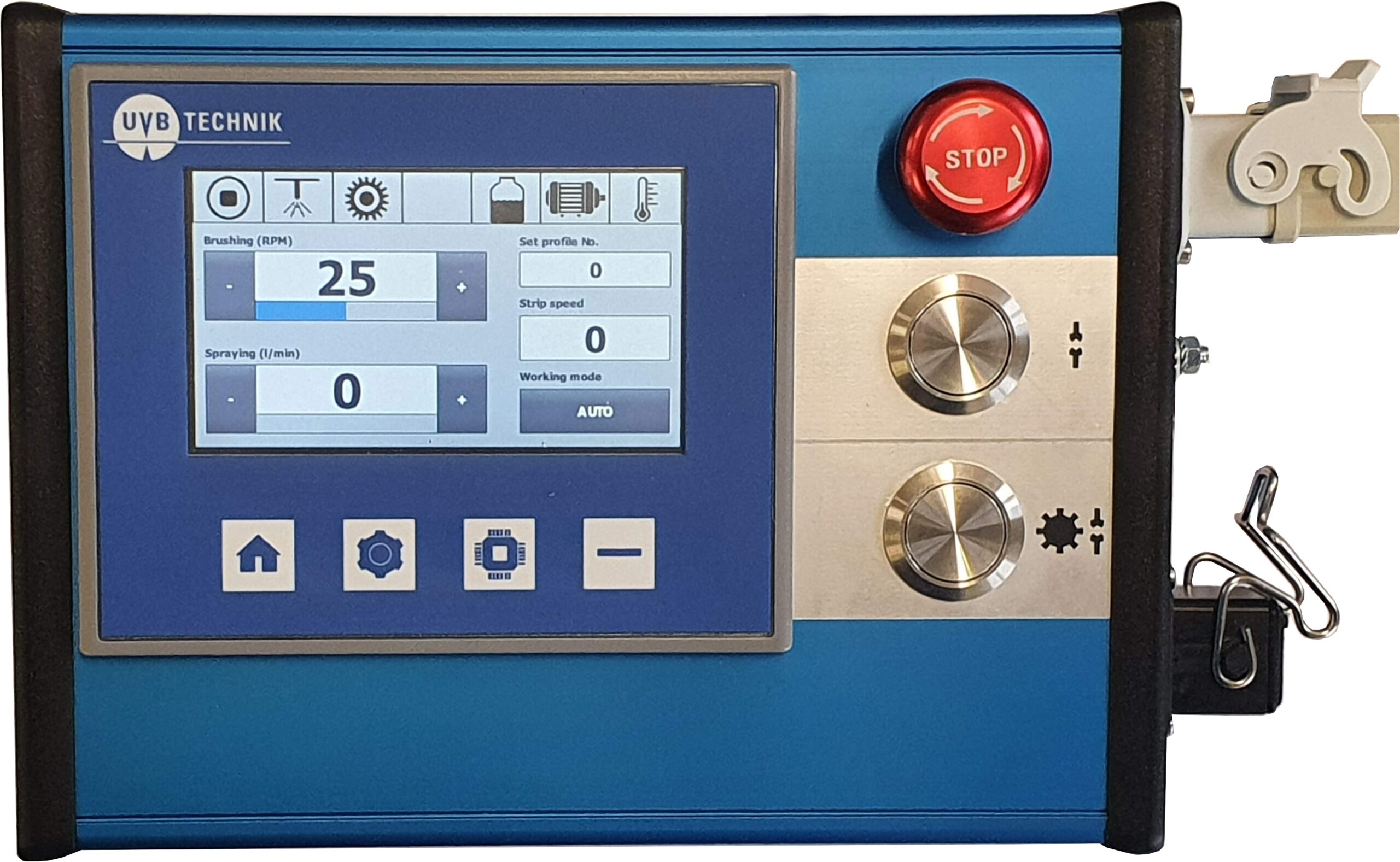

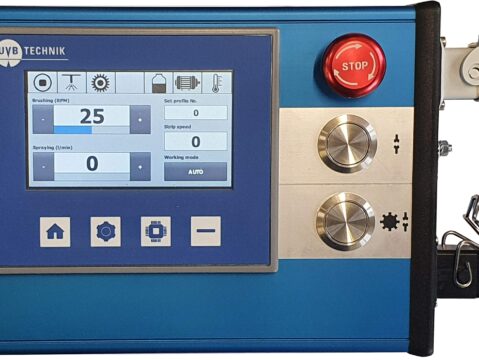

Based on strip material, the programme (speed of brushes, flow volume of degreasing liquid) on touch panel display is chosen. Above mentioned parameters can be automatically modified according to the strip speed. After frame closing the degreasing process starts. Wiped oil and emulsions with the degreasing liquid are collected through a bath into a tank for waste sludge.
Advantages
- Quiet operation
- User-friendly control
- Compact design for installation on current lines (only 290 mm needed)
- Floating frame follows the pass line and strip waves
- Regulated soft pressure of the brushes and wiping slats to avoid any mark on the surface
- Segmented slat holders copy the strip shape/waviness across the width
- High efficiency even compared with whole degreasing lines
Result before degreasing
Result after degreasing
Technical data
| Parameter | OZ |
|---|---|
| Max. strip width | 3000 mm (118″) |
| Max. strip speed | 5 m/s (16 ft/s)* |
| Residual oil | 1 – 20 mg/m2 |
| Max. strip thickness | 10 mm (0.4″) |
| *higher on request | |
